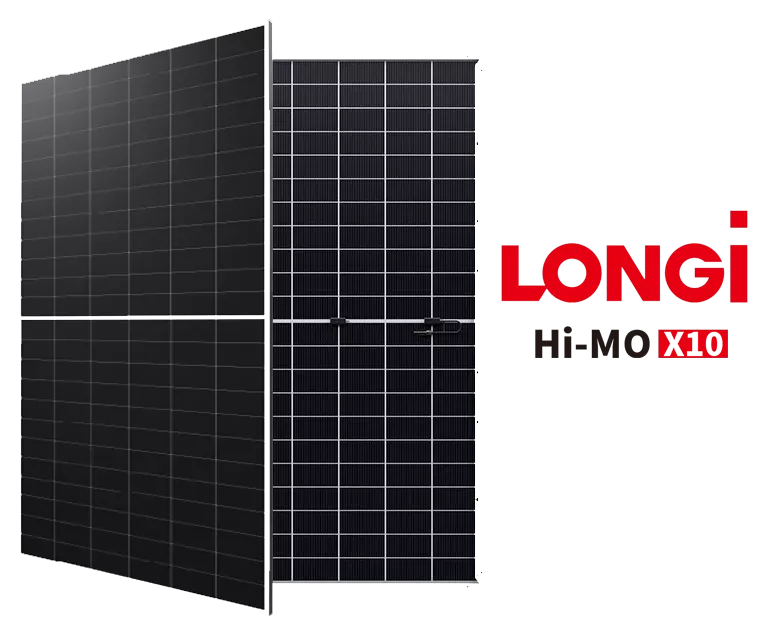

LONGI Hi-Mo X10 Solar Panel
MODELLR7-72HVD
SPECIFICATIONS
Technical Specifications
01
Cells Number
144 (6×24)
02
Maximum Power (Pmax)
645W
03
Open Circuit Voltage (Voc)
54.12V
04
Short Circuit Current (Isc)
15.06A
05
Voltage at Maximum Power (Vmp)
44.87V
06
Current at Maximum Power (Imp)
14.41A
07
Module Efficiency
23.88%
08
Maximum System Voltage
1500VDC
09
Maximum Current in System
30A
10
Operational Temperature
-40℃ ~ +85℃
11
Temperature Coefficient of Isc
+0.050%
12
Temperature Coefficient of Voc
+0.200%
13
Temperature Coefficient of Pmax
+0.260%
14
Protection
IP68
15
1st Year Power Degradation
1%
16
Power Degradation from 2nd Year to 30th Year
0.35% per Year
17
Dimension (L×W×D)
2382×1134×30 mm
18
Weight
32.5KG
