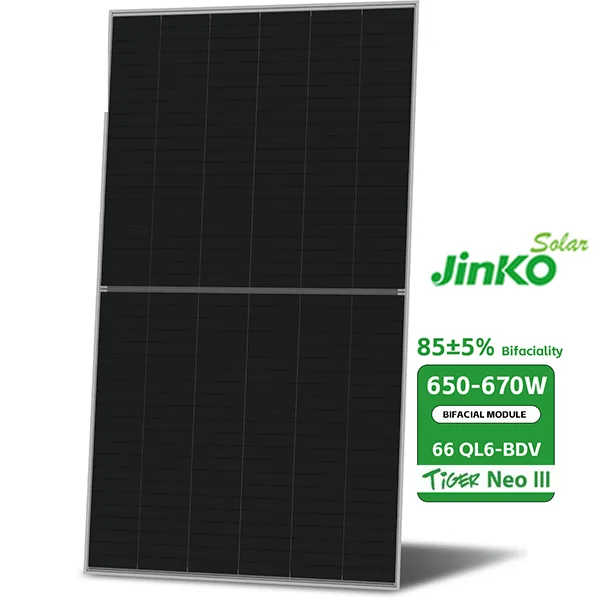

Jinko Tiger Noe3.0 Solar Panel
MODEL66 QL6-BDV
SPECIFICATIONS
Technical Specifications
01
Cells Number
264 (4×66)
02
Maximum Power (Pmax)
650W
03
Open Circuit Voltage (Voc)
50.26V
04
Short Circuit Current (Isc)
15.98A
05
Voltage at Maximum Power (Vmp)
42.57V
06
Current at Maximum Power (Imp)
15.27A
07
Module Efficiency
24.8%
08
Maximum System Voltage
1500VDC
09
Maximum Current in System
35A
10
Operational Temperature
-40℃ ~ +70℃
11
Temperature Coefficient of Isc
+0.046%
12
Temperature Coefficient of Voc
+0.24%
13
Temperature Coefficient of Pmax
+0.26%
14
Protection
IP68
15
1st Year Power Degradation
1%
16
Power Degradation from 2nd Year to 30th Year
0.35% per Year
17
Dimension (L×W×D)
2382×1134×30 mm
18
Weight
32.5KG
